TEAK

Cedar

42x60 mm

42x145 mm

Information

• Length: 3.90 m;

• Dimensions: 42×60 mm x 3.90 m, 42×145 mm x 3.90 m;

• Wall thickness of the profile: 5 mm

• Aluminum profile thickness: 2 mm

• Material: Wood-plastic composite, aluminum

• Composition: 60% wood dust + 40% plastic

• Brand: FIBERDECK (France)

• Warranty: 20-year manufacturer warranty

• Installation: On a metal or wooden frame.

About:

• Profile type: Square hollow profile

• Installation method: Attach to aluminum rails

• Main material: WPC (Wood-Plastic Composite)

• WPC composition: Wood fiber: 60% / HDPE: 40%

• Certification: FSC® certification

• Surface extrusion type: Co-extrusion

• Pigmentation: Random pigmentation

• UV resistance: Yes

• Stain resistance: Yes

• Density (kg/m³): 1150

• Linear mass (kg/m): 1.4

• Thermal conductivity (W/m*K): 0.2

• Installation type: Fixing with adjustable clamps

• Fixing method: Vertical or horizontal installation

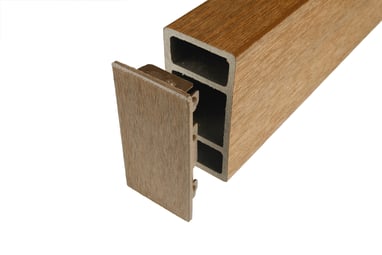

Caps

WEO® Brise soleil profiles can be capped to ensure a neat finish.

The caps are placed on the ends of the profiles. For better adhesion, it is recommended to apply mastic glue.

The aluminum tube must be properly adjusted to allow the cap to be installed. The caps are the same color as the profiles.

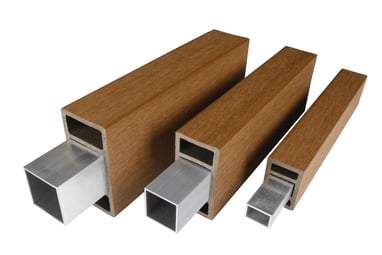

Aluminum reinforcement

WEO profiles are designed to accommodate a 2 mm thick aluminum profile, with standard dimensions of 30x30 mm or 30x60 mm, depending on the purpose and wind loads. The aluminum reinforcement absorbs the bending forces between the two support points, ensuring that the profile deformation does not exceed 1.5 mm. A 30x30x2 mm aluminum profile, 3.85 meters in length, can be supplied with the WEO® Brise soleil.

Brise soleil:

Rot and termite-resistant finish. The polymer film ensures long-lasting color brightness. The WEO® Brise-Soleil is a modern architectural detail used to reduce discomfort caused by direct sunlight. It allows users to enjoy natural light without allowing excessive heat to enter the building.

Brise soleil environmental information: B rating.

Service life: > 20 years
Carbon emissions (kg): 14.07
Recycled material (%): 95%
Recycled materials: WPC
Natural materials (%): 60%

Profile

These profiles are decorative. They do not have any waterproofing or insulation properties for buildings. The Brise-Soleilsystem can be used without any restrictions for all types of public spaces, commercial buildings, as well as private and multi-apartment houses. Fire classification does not apply.

Individual installation

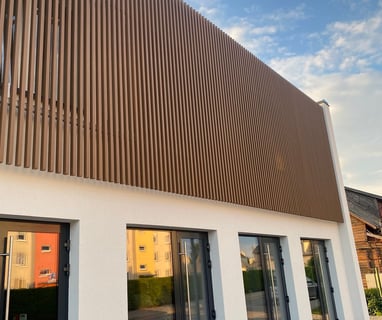

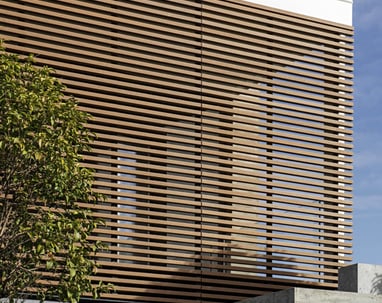

Multiple installation

Installation example

An aluminum rail is screwed to the wall or structure. A hook is mounted onto the Brise-Soleil profile, which then slides onto the aluminum rail. This method makes the fixing invisible.
